My astronomy project:
EQ mount with no meridian flip ideas


Content:

  1. Introduction
  2. First simple drawing of an idea
  3. What mount head to use?
  4. Base disc
  5. Arm details
  6. Twin telescope mount
  7. Azimuth angle trimmer
  8. Summary of the first ideas drawings

Note:
I take no responsibility for what are written here, you use the information at your own risk!


7, Azimuth angle trimmer:

I need somewhere to adjust the Azimuth angle.

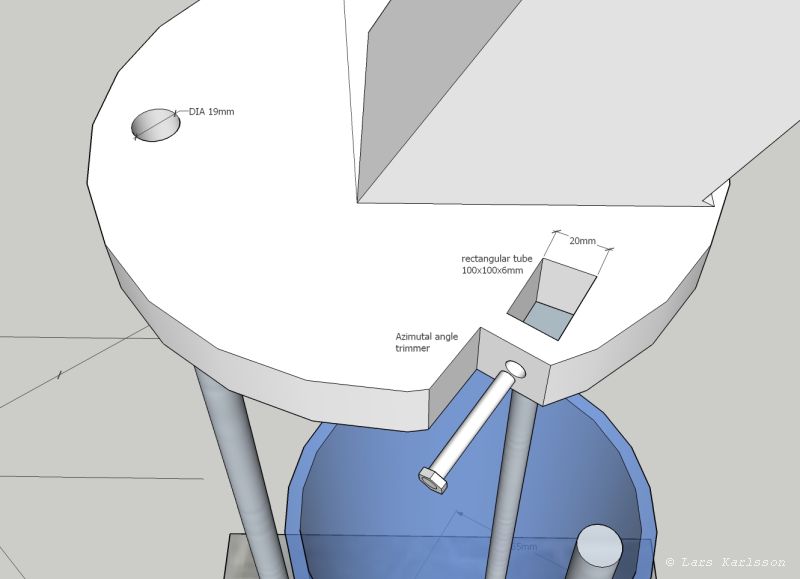

Azimutal angle trimmer

This is maybe not a perfect solution, but I doesn't need to adjust this angle very often. There will be another adjuster on the opposite side behind the arm.

Go Back to content

Go Back
To page VIII
